WPS Integrated equipment for micro sand loading and multi effect clarification-type WPG400

Name: WPS Integrated equipment for micro sand loading and multi effect clarificationtype WPG400
Brand: EVEREST
Price: 1 USD

Brand Name : EVEREST

Model Number : WPG-400

Certification : lS09001,IS014001, ISO45001, (TS ) Grade A, PED2014/68/EU,AP1 5LC, API 5LD, ASME, CCS, LR, DNV , BVRINA and ABS.

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 800 units/year

Delivery Time : 15-24working days

Packaging Details : according to customers' demand

Product : WPS Integrated equipment for micro sand loading and multi effect clarification-type WPG400

Model : WPG-400

Capacity : 400m³/h

Dissohedair quantity : 42m³/h

Reflow pump : 15

Exhaust : 2.2

Scavenger : 0.75

Mixer : 2.2

length(m) : 14m

Width : 3.8m

Height : 3m

Nozzle list : Iniet:400,Outlet:500,Sludge outlet:250,Empty mouth:100

Application field : Removal of various heavy metal ions in electroplating wastewater,Removal of impurities from tanning wastewater,ect

Technical advantages : The utilization efficiency of dissolved air water is high, and the air flotation equipment works stably, Low-noise ,ect

Surface load of the precipitation section : 40- 65m³/(m²·h)

SS and TP removal rate : Over 9 0 %

COD removal rate : 40%

Project Case : Fuzhou Cangshan Longjin Yangqi water system management

Contact Now

  WPS Integrated equipment for micro sand loading and multi effect clarification-type WPG400  Product Description

High-Efficiency Water Treatment with Advanced Micro Sand Technology

The WPG400 Micro Sand Loading and Multi-Effect Clarification Integrated Equipment is a cutting-edge solution designed to deliver exceptional water treatment performance through enhanced flocculation and sedimentation. By using micron-level selected quartz sand as a carrier, the WPG400 significantly improves solid-liquid separation efficiency, ensuring consistent and stable treatment results. Its compact design and advanced technology make it ideal for applications in municipal sewage treatment, overflow pollution control, and water plant pre-treatment.

Innovative Working Principle

The WPG400 system enhances water treatment through a multi-stage process:
✅ Dosing and Coagulation: Coagulants and flocculants are added to raw water, forming stable flocs.
✅ Micro Sand Loading: Micro sand is introduced, increasing floc density and improving sedimentation efficiency.
✅ Efficient Sedimentation: The micro sand-enhanced flocs settle quickly, enhancing solid-liquid separation.
✅ Mud-Sand Separation and Recycling: The system separates and recycles micro sand, maintaining continuous high performance.

Key Technological Advantages

✅ High Surface Load and Fast Processing

Surface load of 40–65 m³/m²·h for high-capacity processing.
Total residence time of less than 20 minutes ensures rapid treatment.

✅ Superior Treatment Efficiency

>90% removal rate for suspended solids (SS) and total phosphorus (TP).
COD removal rate up to 40% for enhanced water quality.
Effluent TP remains stable below 0.1 mg/L; turbidity below 5 mg/L.

✅ Micro Sand Recycling for Enhanced Performance

High micro sand recovery rate ensures continuous, stable operation.
Strong load impact resistance guarantees consistent treatment under varying conditions.

✅ Low Operating Costs and Minimal Maintenance

Energy-efficient design reduces operational costs.
Durable construction minimizes maintenance needs.

✅ Compact and Integrated Design

Space-saving structure suitable for limited installation areas.
Fully automated control system for easy operation.

Wide Range of Applications

Municipal Wastewater Treatment: Improves discharge quality in sewage plants.
Overflow Pollution Control: Effectively handles stormwater and mixed wastewater.
Industrial Wastewater Treatment: Suitable for high-solid-content wastewater.
Water Plant Pre-Treatment: Reduces downstream processing load and enhances water quality.

    Modelspecifications andrelated technical parameters

Model	Capacity m³/h	Dissohedair quantity	Power Kw				Dimension(m)			Nozzle list
Model	Capacity m³/h	Dissohedair quantity	Reflowpump	Exhaust	Scavenger	Mixer	length	width	height	Iniet(A)	Outlet(B)	Sludge outlet(C)	Empty mouth(D)
WPG-1	~1	~0.7	0.55	0.55	0.2	0.4	1.7	0.55	1.1	32	32	40	32
WPG-2	~2	~1	0.55	0.55	0.2	0.4	2.8	0.65	4.5	40	40	50	40
WPG-3	~3	~2	0.75	0.55	0.2	0.4	3.5	0.8	1.6	80	80	80	50
WPG-5	~5	~3	1.1	0.55	0.2	0.75	4	1	1.7	80	80	80	50
WPG-10	~10	~4	1.5	0.75	0.2	0.75	5	1.2	2	100	100	100	80
WPG-15	~15	~5	2.2	0.75	0.2	0.75	5.5	1.5	2	125	125	100	80
WPG-20	~20	~7	3	0.75	0.2	0.75	5.8	1.8	2	150	150	100	80
WPG-30	~30	~8	3	0.75	0.2	0.75	6	2	2.1	150	150	100	80
WPG-40	~40	~9	4	0.75	0.2	0.75	7	2.2	2.1	200	200	100	80
WPG-50	~50	~10	5.5	0.75	0.2	0.75	7.2	2.5	3	200	200	100	80
WPG-60	~60	~10	5.5	0.75	0.2	0.75	7.4	2.5	3	200	200	100	80
WPG-70	~70	~12	5.5	0.75	0.2	1.1	7.6	2.5	3	200	200	100	80
WPG-80	~80	~12	5.5	0.75	0.2	1.1	7.8	2.5	3	200	200	100	80
WPG-100	~100	~15	5.5	0.75	0.2	1.1	8	2.5	3	200	250	100	100
WPG-120	~120	~15	5.5	0.75	0.4	2.2	8.5	2.5	3	250	250	200	100
WPG-150	~150	~30	7.5	1.5	0.4	2.2	9	3.1	3	250	250	200	100
WPG-200	~200	~30	7.5	1.5	0.4	2.2	10	3.1	3	250	350	250	100
WPG-300	~300	~42	15	2.2	0.75	2.2	14	3.6	3	300	400	250	100
WPG-400	~400	~42	15	2.2	0.75	2.2	14	3.8	3	400	500	250	100

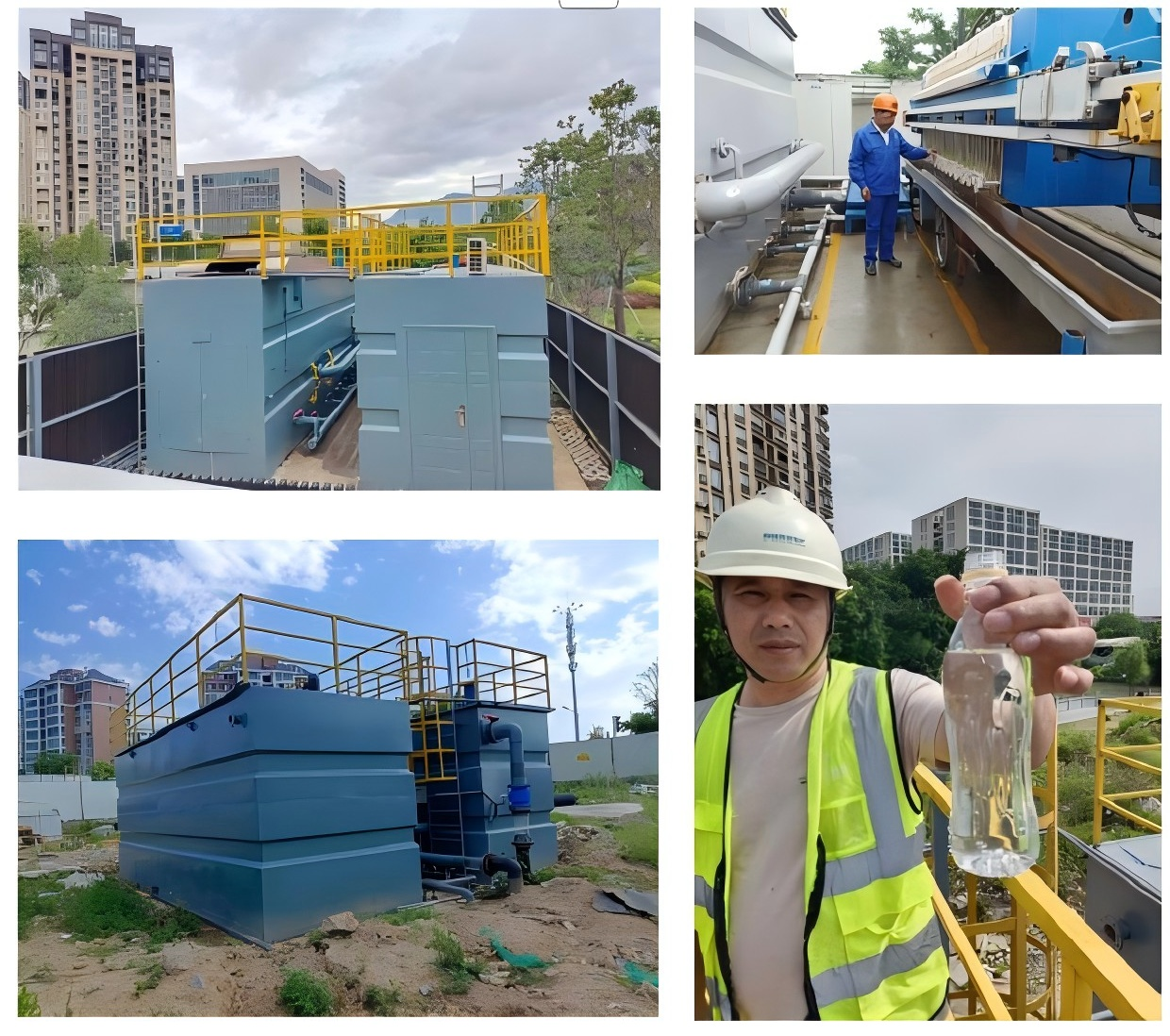

Project Case

Fuzhou Cangshan Longjin Yangqi water system management

WPS Integrated equipment for micro sand loading and multi effect clarification-type WPG400

Certificate

API-5LD AUTHENTICATION	American Petroleum Institute API 5LC Certificate	ASME Certificate in the United States	EU PED&AD2000 certificate	ABS classification society certification certificate in the United States	DNV Det Norske Veritas Certificate	RINA Italian Bureau of Shipping Certificate	BV French Bureau of Shipping certification	LR Lloyd's Register Certificate of Approval	Customs Union EAC Certificate	Russian GOST certificate

Why Choose the WPG400?

✅ High Efficiency: Fast processing and high removal rates.
✅ Cost-Effective: Low energy consumption and maintenance costs.
✅ Reliable Performance: Stable treatment even under load fluctuations.
✅ Space-Saving: Compact design with high capacity.
✅ Eco-Friendly: Clean discharge with no secondary pollution.
