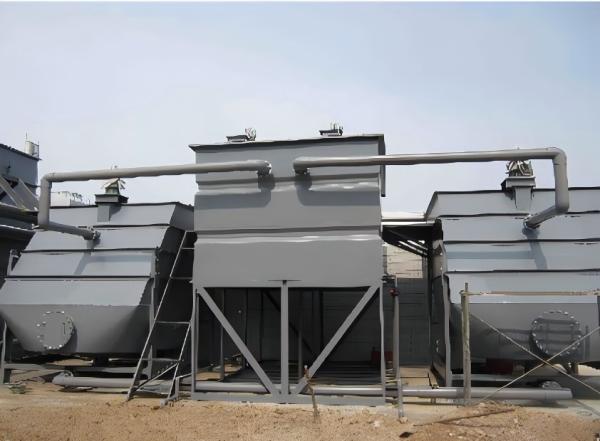

Wastewater Water Treatment Equipment with Shallow Air Flotation Technology

  • 1
  • 2
  • 3

Brand Name : EVEREST

Model Number : WPW-20

Certification : lS09001,IS014001, ISO45001, (TS ) Grade A, PED2014/68/EU,AP1 5LC, API 5LD, ASME, CCS, LR, DNV , BVRINA and ABS.

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 800 units/year

Delivery Time : 15-24working days

Packaging Details : according to customers' demand

Product : Wastewater Water Treatment Equipment with Shallow Air Flotation Technology

Model : WPW-20

Capacity (m³/h) : 20

Aeration machine (KW) : 2.2

Slag scraper (KW) : 0.55

Mixer (KW) : 0.75

Length : 5.2m

Width : 1.3m

Height : 1.4m

Inlet : 150

Outlet : 150

Sludge outlet : 150

Empty mouth : 80

Application field : Slaughtering wastewater in the meat processing industry,etc.

Contact Now

Wastewater Water Treatment Equipment with Shallow Air Flotation Technology


Our Wastewater Treatment Equipment with Shallow Air Flotation Technology is designed to deliver superior performance in industrial wastewater treatment. Based on the "shallow pond theory" introduced by Professor Hazen in Germany, this innovative system maximizes treatment efficiency by increasing the sedimentation area rather than the depth of the tank. Its compact design, high separation efficiency, and stable operation make it ideal for a wide range of industrial applications.


Innovative Working Principle

The system leverages the shallow pond theory, where sedimentation capacity is determined by the surface area rather than depth. Key features include:
✅ Inclined Plate Design: The system uses inclined plates to increase the effective sedimentation area, improving separation efficiency.
✅ Efficient Water Flow: Direct collection of water through equal resistance ensures balanced water distribution across all plates.
✅ Rapid and Stable Removal: Suspended solids, oil, and grease are efficiently separated and discharged, ensuring consistent effluent quality.


Key Technological Advantages

✅ Space-Saving Design:

  • Lengthened inclined plates improve separation efficiency and save 1.5 to 2 times the floor space compared to traditional systems.

✅ Uniform Water Distribution:

  • Direct and balanced collection of treated water and supernatant ensures stable operation.

✅ No Hydraulic Dead Spots:

  • Eliminates whirlpools and stagnant zones for consistent performance.

✅ Non-Clogging System:

  • 60-degree inclined plates with 8–10 cm spacing prevent clogging and ensure smooth operation.

✅ Robust and Easy to Maintain:

  • Constructed from 6 mm hard PVC or 2 mm stainless steel for high strength and easy cleaning.

  • Equipped with a scraper system to ensure smooth mud discharge and prevent compaction or clogging.


Versatile Application Range

  • Petrochemical Industry: Efficient treatment of oil-containing wastewater.
  • Mining Industry: Handles wastewater with high solid content.
  • Meat Processing Industry: Effective removal of fats and proteins.
  • Dairy Processing Industry: Removes grease and suspended solids from wastewater.
  • Paper and Pulp Industry: Treats white water and improves effluent quality.
  • Machining Industry: Removes oil and metal particles from wastewater.


Model specifications and related technical parameters

Model Capacity (m³/h) Aeration machine (KW) Slag scraper (KW) Mixer (KW) Dimension (L × W × H) (m) Inlet (A) Outlet (B) Sludge outlet (C) Empty mouth (D)
WPW-5 5 1.5 0.75 4.0 4.0 × 1.0 × 1.4 80 80 50 50
WPW-10 10 2.2 0.75 5.0 5.0×1.2×1.4 100 100 80 80
WPW-15 15 2.2 0.75 5.0 5.0 × 1.3 × 1.4 125 125 125 80
WPW-20 20 2.2 0.75 5.2 5.2 × 1.3 × 1.4 150 150 150 80
WPW-30 30 2.2 0.75 6.0 6.0 × 1.6 × 1.7 150 150 150 80
WPW-40 40 2.2/4.4 1.1 7.0 7.0 × 1.6 × 1.8 200 200 150 80
WPW-50 50 4.4 1.1 7.5 7.5 × 1.8 × 1.8 200 200 150 80
WPW-70 70 4.4 1.1 9.0 9.0 × 2.4 × 1.8 200 200 150 80
WPW-100 100 4.4 1.1 9.5 9.5 × 2.4 × 1.8 200 200 150 100
WPW-120 120 6.6 1.5 10.0 10.0 × 2.4 × 2.0 200 200 150 100
WPW-150 150 6.6 1.5 11.0 11.0 × 2.4 × 2.4 250 250 150 100
WPW-200 200 8.8 2.2 13.5 13.5 × 2.6 × 1.8 250 250 250 100


Project Case

Paper-making Wasterwater Treatment

Project overview: Air flotation is designed to treat workshop wastewater andPulp recycling, waste water treatment and recycling.
Water treatment capacity:45000T/D

Wastewater Water Treatment Equipment with Shallow Air Flotation Technology





Certificate

API-5LD AUTHENTICATION American Petroleum Institute API 5LC Certificate ASME Certificate in the United States EU PED&AD2000 certificate ABS classification society certification certificate in the United States DNV Det Norske Veritas Certificate RINA Italian Bureau of Shipping Certificate BV French Bureau of Shipping certification LR Lloyd's Register Certificate of Approval Customs Union EAC Certificate Russian GOST certificate
Wastewater Water Treatment Equipment with Shallow Air Flotation Technology Wastewater Water Treatment Equipment with Shallow Air Flotation Technology Wastewater Water Treatment Equipment with Shallow Air Flotation Technology Wastewater Water Treatment Equipment with Shallow Air Flotation Technology Wastewater Water Treatment Equipment with Shallow Air Flotation Technology Wastewater Water Treatment Equipment with Shallow Air Flotation Technology Wastewater Water Treatment Equipment with Shallow Air Flotation Technology Wastewater Water Treatment Equipment with Shallow Air Flotation Technology Wastewater Water Treatment Equipment with Shallow Air Flotation Technology Wastewater Water Treatment Equipment with Shallow Air Flotation Technology Wastewater Water Treatment Equipment with Shallow Air Flotation Technology


Why Choose This Equipment?

✅ High Efficiency: Fast separation and high removal rates.
✅ Compact and Space-Saving: Reduced footprint with enhanced capacity.
✅ Reliable Performance: Stable operation under varying load conditions.
✅ Easy Operation and Maintenance: Low maintenance costs and simple control.
✅ Eco-Friendly: Clean discharge with no secondary pollution.


Upgrade your wastewater treatment process with our high-efficiency Shallow Air Flotation Equipment – compact, powerful, and built for long-term performance.
